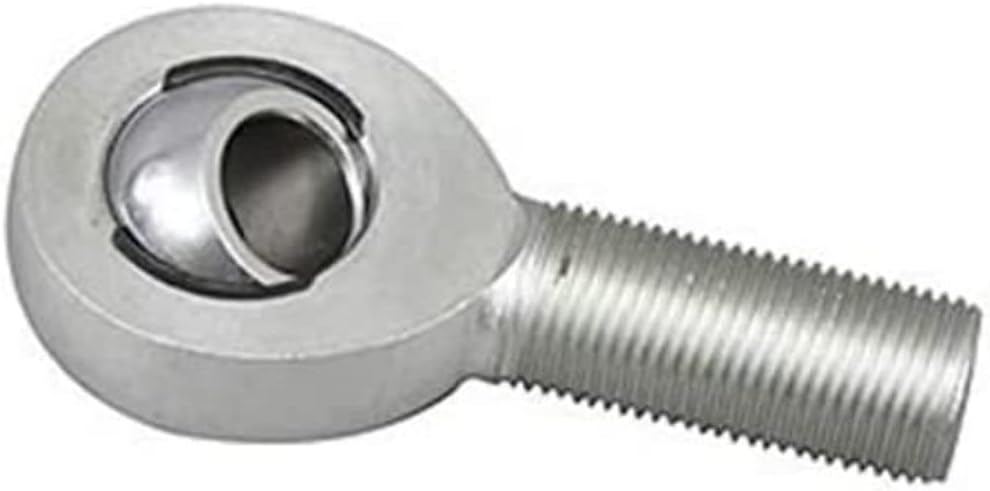

QA1 MHMR20T HM-T Series Chromoly Steel Male Rod End with PTFE Liner

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

MHMR20T
17 reviews
Sale Price

$49.10

Estimated ship date Friday, November 20

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products MHMR20T is a high-performance HM-T Series male rod end featuring advanced three-piece construction with a PTFE liner for reduced friction and maintenance-free operation. This precision-engineered rod end utilizes QA1's proprietary manufacturing process where the ball is pressed into a sleeve and swaged to create superior ball-to-race conformity, delivering tighter tolerances than traditional designs.

Three-Piece Construction Benefits:

  • Ball pressed into sleeve and swaged for optimal conformity
  • Insert precision-turned and faced for accurate staking
  • Superior tolerance control for high-precision applications
  • PTFE liner reduces friction and eliminates maintenance requirements

Ball Specifications:

  • 52100 bearing steel construction
  • Heat treated for maximum durability
  • Hard chrome plated surface
  • Precision ground for smooth operation

Race Specifications:

  • Low carbon steel construction
  • PTFE lined for reduced friction
  • Corrosion and wear resistant

Body Specifications:

  • Chromoly steel construction
  • Heat treated for strength
  • Protective coating for corrosion resistance

The HM-T Series rod ends are available in both right and left hand threads, as well as metric and inch dimensions. Optional stud configurations are available for custom applications. Ideal for racing, suspension systems, steering linkages, and other demanding applications requiring precision articulation with minimal friction.

Products specifications

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

25.000mm

Rod End Centerline Length

78.000mm

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

20.000mm

Rod End Head Diameter

46.000mm

Rod End Head Width

25.000mm

Rod End Material

Alloy steel

Rod End Misalign Angle (degrees)

20 degrees

Rod End Static Load Capacity

88,664 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

20mm x 1.50 RH

Size

20mm-20mm

Thread

Right Hand

Thread Length

47.000mm
