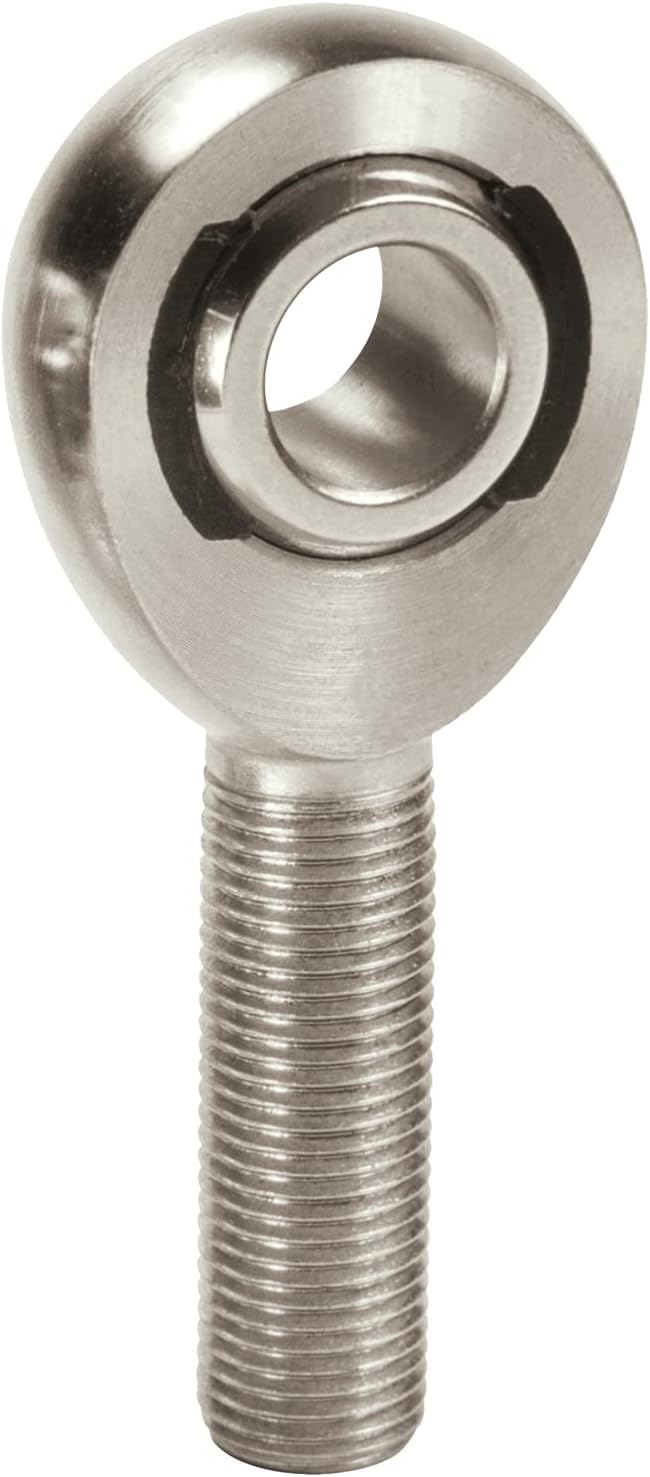

QA1 XMR16 XM Series Chromoly Steel Male Rod End 1 Inch Bore 1-1/4-12 RH

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

XMR16
10 reviews
Sale Price

$103.04

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 XMR16 is a premium chromoly steel male rod end from the XM Series, engineered for ultimate performance in demanding motorsports applications. Featuring QA1's innovative loader slot design, this heavy-duty rod end delivers exceptional strength and durability, making it ideal for 4-link and ladder bar suspension systems where reliability is critical.

Advanced Loader Slot Technology:

QA1's exclusive loader slot design features a significant groove machined around the interior of the body. The ball is inserted into the slot, and a reinforced Nylon 12 race with self-lubricating PTFE is injection molded into place. This innovative construction provides metal-to-metal support for heavy shock loads while maintaining smooth operation under low loads. Unlike traditional three-piece PTFE liners that can pound out over time, the injection molded race won't deteriorate, significantly extending rod end service life.

Premium Ball Construction:

  • 52100 bearing steel for superior strength
  • Heat treated for maximum durability
  • Hard chrome plated finish
  • Precision ground for tight tolerances

Self-Sealing, Self-Lubricating Race:

  • Reinforced Nylon 12 with integrated PTFE
  • Keeps dirt and debris out
  • Eliminates need for external lubrication
  • Won't pound out like traditional liners

Chromoly Steel Body:

  • Heat treated alloy/chromoly steel construction
  • Protective coating for corrosion resistance
  • Increased cross-sectional thickness
  • Zinc plated finish

Key Specifications:

  • Bore size: 1 inch
  • Thread size: 1-1/4 inch-12 RH (right-hand) male threads
  • Ball width: 1.375 inches
  • Head diameter: 2.75 inches
  • Centerline length: 4.125 inches
  • Thread length: 2.125 inches
  • Misalignment angle: 17 degrees
  • Static load capacity: 76,200 lbs

The XM Series represents the pinnacle of QA1's rod end engineering, offering good overall value and providing the best performance for most racing and high-performance street applications. Available in both right-hand and left-hand thread configurations to suit any suspension geometry.

Products specifications

A (+/-0.015)

4.125

Approx Bearing Weight

2.41

B (+0.0015/-0.0005)

1

Ball Dia Ref

1.875

C (+0.062/-0.031)

2.125

D (+/-0.010)

2.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

17

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

1.375 in.

Rod End Centerline Length

4.125 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

1.000 in.

Rod End Head Diameter

2.750 in.

Rod End Head Width

1.375 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

17 degrees

Rod End Static Load Capacity

76,200 lbs.

Rod End Static Load Capacity (lbs)

76,200 lbs.

Rod End Style

Teflon®/Kevlar® lined

Rod End Thread Size

1 1/4-12 RH in.

T (+/-0.005)

1

Thread Length

2.125 in.

Thread Type

Right Hand

Thread UNF-3A

1-1/4 -12

UTL Radical Static

76200

W (+/-0.005)

1.375

Title

QA1 Suspension Rod End Bearing XMR16

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
