American Autowire 510317 Classic Update Complete Wiring Harness Kit 1966-77 Ford Bronco

Manufacturer

Part Number

510317
Black Friday Price

$1,091.55

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

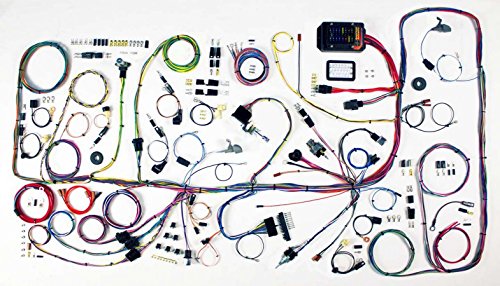

The American Autowire 510317 Classic Update Wiring Kit is a comprehensive solution for completely rewiring 1966-1977 Ford Bronco vehicles. This professional-grade harness system is specifically engineered for modified restoration builds that require more circuits than the original factory wiring, making it ideal for resto-mod projects incorporating modern accessories like electronic fuel injection, aftermarket gauges, air conditioning, and high-output alternators.

Complete Kit Includes:

  • Compact ATO-style fuse panel with enclosed box assembly that mounts inside glove box (mounting hardware and modification template included)
  • Pre-built dash harness with exclusive gauge cluster disconnect system for easy service
  • Main chassis harness with modern GXL wire throughout
  • Engine wiring with feeds for coil, tach, water temperature, oil pressure, electric choke, and electric speedometer
  • Front lighting harness with extra-long leads for custom routing
  • Rear body harness with extended leads for stock or custom wire routing
  • New floor dimmer switch, ignition switch, headlight switch, and windshield wiper switch
  • Turn signal flasher, hazard flasher, and horn relay (harness-mounted)
  • Under-dash courtesy lamp assemblies
  • Heavy gauge alternator feed with fusible link for high-output alternators
  • Fuse, relay and flasher kit with all necessary hardware
  • Practice terminal crimping set
  • Complete installation instructions with color schematics

Key Features:

  • 16-circuit design provides capacity for modern accessories and upgrades
  • Wire functions labeled every 3 to 5 inches for easy identification
  • Original-style switch connector bodies for factory-like fit (American Autowire exclusive)
  • Steering column connectors compatible with stock 1966-77 Ford columns and most aftermarket columns (adapters and terminals included)
  • Gauge cluster wiring supports both stock instruments and popular aftermarket gauges (AutoMeter, Classic Instruments, Dakota Digital, VDO, Stewart Warner)
  • Six-way power accessory plug for convenient connection of aftermarket accessories
  • Rear harness includes backup light, stop/taillight, and license plate lamp connections with OE pigtail compatibility
  • Extra-long wire lengths throughout allow for stock or custom routing options
  • Spring steel reinforced terminals on high-amperage circuits for superior reliability

This American-made wiring harness provides everything needed to rewire your classic Bronco from headlight to taillight. The system is designed for modified vehicles and is not compatible with factory ammeters or stock radio speaker locations. Advanced installation skill recommended.
