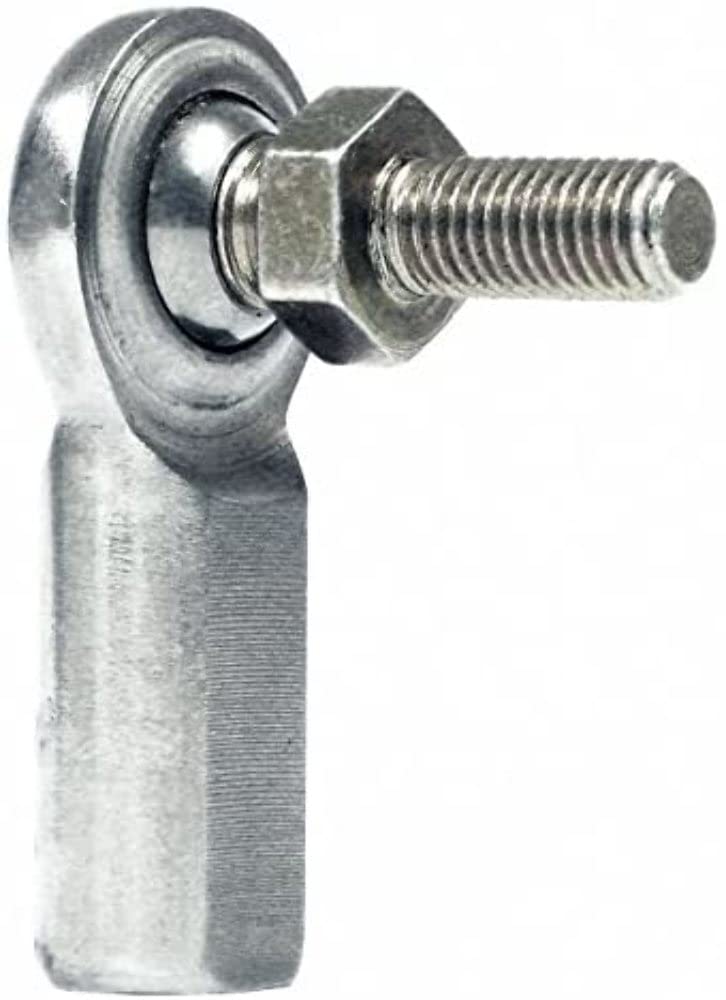

QA1 Precision Products GFL6T Female Rod End 3/8 Bore 3/8-24 Thread PTFE Lined

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

GFL6T
4 reviews
Sale Price

$15.57

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products GFL6T is a heavy-duty G Series two-piece rod end designed for high-performance suspension and steering applications. This precision-engineered component features a female mounting configuration with integrated PTFE race lining for reduced friction and extended service life.

Key Specifications:

  • Bore Size: 3/8 inch (0.375")
  • Thread Size: 3/8-24 RH (right-hand)
  • Construction: Two-piece design with 300 series stainless steel body
  • Race Lining: PTFE (polytetrafluoroethylene) for self-lubricating operation
  • Mounting Style: Female threaded shank
  • Series: G Series - general purpose high-load capacity

Features & Benefits:

  • Corrosion-resistant stainless steel construction for durability in harsh environments
  • PTFE lining reduces friction and eliminates the need for constant lubrication
  • Two-piece design allows for easier maintenance and inspection
  • Precision tolerance for smooth articulation and minimal play
  • Suitable for suspension links, steering linkages, and other articulating joints

QA1's G Series rod ends are engineered for applications requiring reliable performance under high loads and demanding conditions. The female threaded shank provides secure attachment when a male fastener is used for mounting.

Products specifications

A (+/-0.015)

1.625

Approx Bearing Weight

0.13

B (+0.0015/-0.0005)

0.375

Ball Dia Ref

0.719

C (+0.062/-0.031)

0.812

D (+/-0.010)

1

E (+/-0.010)

0.687

F (+/-0.010)

0.562

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

22

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.500 in.

Rod End Centerline Length

1.625 in.

Rod End Construction

2-piece

Rod End Finish

Natural

Rod End Head Bore Size

0.375 in.

Rod End Head Diameter

1.000 in.

Rod End Head Width

0.500 in.

Rod End Material

Stainless steel

Rod End Misalign Angle (degrees)

22 degrees

Rod End Static Load Capacity

4,527 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

3/8-24 LH in.

Thread Length

0.812 in.

Thread Type

Left Hand

Thread UNF-2B

3/8 -24

UTL Radical Static

4527

W (+/-0.005)

0.5

Prop 65 Yes/No

Yes

Prop 65 - Short Label

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
