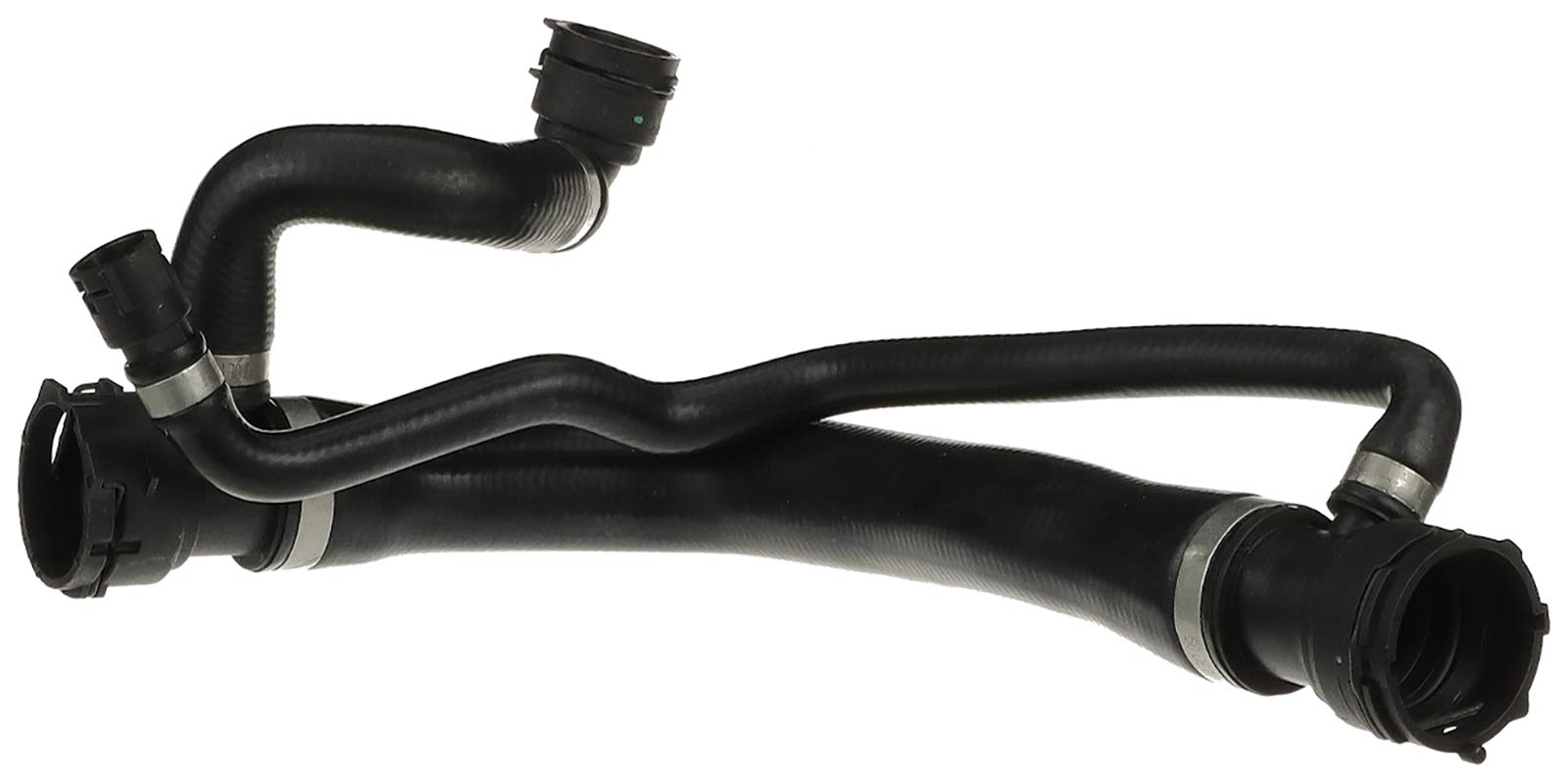

Gates 24087 Premium Molded Modular Coolant Hose Upper

The Gates 24087 is a premium modular coolant hose assembly designed as a direct replacement for OEM upper radiator hose applications. This molded hose features integrated quick-connect fittings and branch connectors that eliminate the need for cutting, refitting, or adjusting during installation.

Key Features:

• Pre-shaped molded design ensures proper fit and perfectly sealed connections
• Manufactured with OEM-exact components including 4 female quick connectors and integrated branch assemblies
• EPDM tube construction with synthetic fiber knit reinforcement for maximum durability
• Engineered to resist electrochemical degradation (ECD), the leading cause of coolant hose failure
• Heat and ozone-resistant EPDM cover stands up to harsh under-hood conditions
• Specifically engineered materials resist vacuum collapse without internal springs

Technical Specifications:

• Material: EPDM rubber, plastic, and steel components
• Temperature range: -40°F to +257°F (-40°C to +125°C)
• Meets SAE 20R3 EC Class D1 (under 1 inch ID) and SAE 20R4 EC Class D1 (1 inch ID and over)
• Centerline length: 356mm (approximately 14 inches)
• Multiple end diameters: 38mm, 38mm, 0.75 inch, and 19mm
• OEM cross-reference: 17127519248

This modular hose assembly saves installation time by eliminating the need to reuse old quick connectors and O-rings, preventing potential leaks and comebacks. Gates recommends replacing hose clamps each time a new coolant hose is installed for optimal performance.
