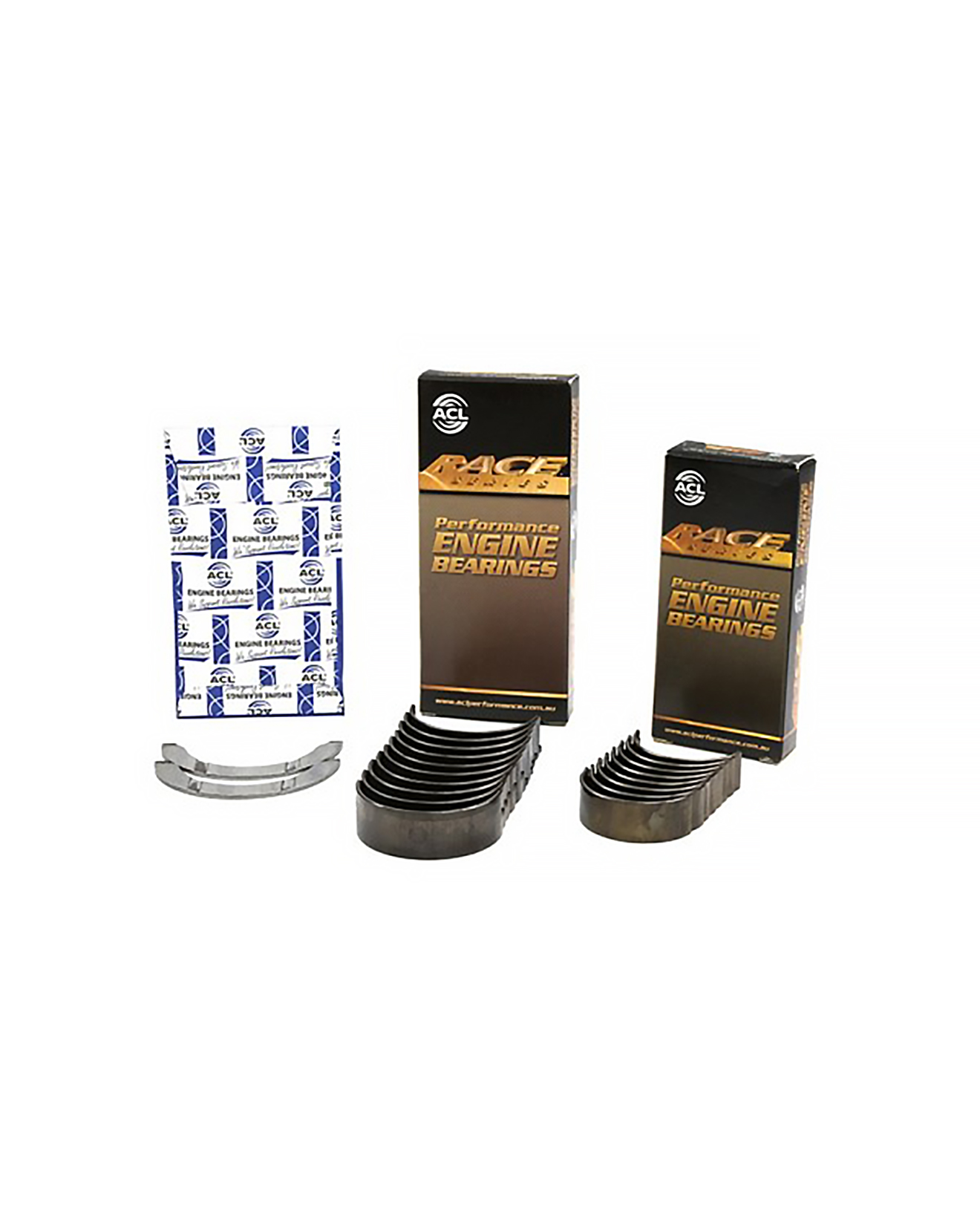

ACL Bearings 1B745H-01 Race Series Rod Bearing Undersize Small Block Chevy - 001

Manufacturer

Part Number

1B745H-01
Black Friday Price

$35.00

Estimated ship date Saturday, December 12

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 1B745H-01 is a high-performance connecting rod bearing designed for Small Block Chevrolet engines. This Race Series bearing features a .001 inch undersize dimension, making it ideal for engine rebuilds with machined crankshaft journals or for achieving precise oil clearances in performance applications.

Race Series Performance Features:

  • High strength overlay plate with reduced thickness for improved fatigue resistance
  • Hardened steel backing to improve bearing lining support and retention in the housing
  • Increased crush for improved bearing retention under high RPM conditions
  • No flash plating on the back for improved heat transfer and maximum grip
  • Increased eccentricity to compensate for bore distortion at high RPM and assist in hydrodynamic oil film formation
  • Tight consistent wall tolerances to help maintain precise clearances
  • Tri-metal construction for superior strength and seizure resistance

ACL Race Series bearings are engineered with a unique combination of design, metallurgy, and precision manufacturing to deliver the endurance and performance demanded by racing engines and high-output street applications. These bearings are proven in motorsports competition from drift racing to NASCAR, IHRA, and NHRA events.

Products specifications

Max Overall Length

0.842"(21.38mm)

Max Std Shaft Size

2.0000"(50.800mm)

Max Std Tunnel Size

2.1252"(53.980mm)

Max Wall at Crown

0.0621"(1.577mm)

Min Std Shaft Size

1.9990"(50.775mm)

Min Std Tunnel Size

2.1247"(53.967mm)

Oil Clearance

Standard
