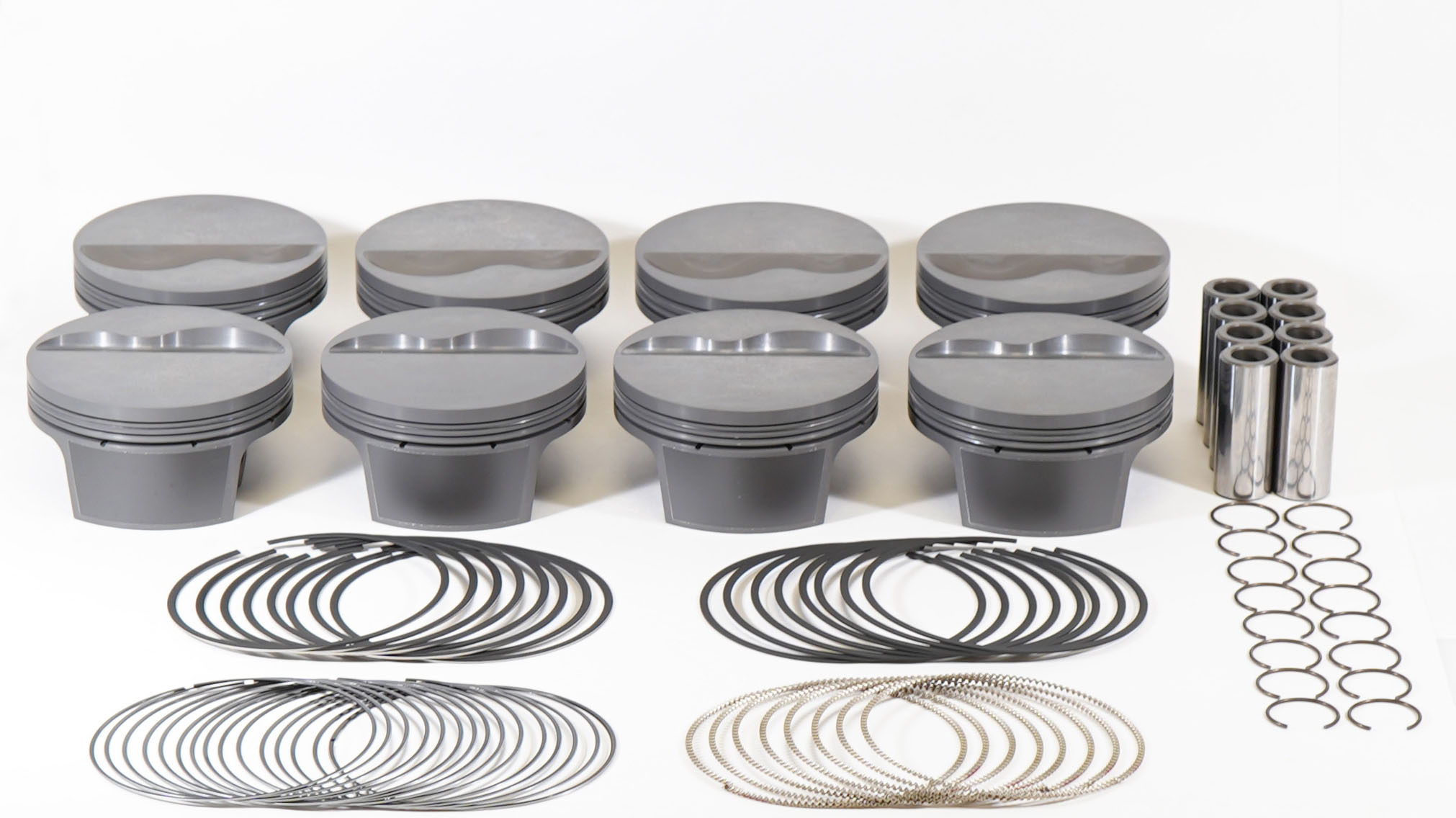

MAHLE 930244530 Performance Piston 4.030" Bore 331ci Small Block

Manufacturer

Part Number

930244530
Black Friday Price

$684.14

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MAHLE 930244530 is a high-performance forged piston designed for 331 cubic inch small block engine builds. Manufactured from premium 4032 aluminum alloy, this piston delivers excellent strength-to-weight ratio and superior thermal expansion characteristics for demanding performance applications.

Key Specifications:

  • Bore Size: 4.030 inches
  • Stroke: 3.250 inches
  • Compression Height: 1.165 inches
  • Pin Diameter: 0.927 inches
  • Rod Length: 5.400 inches
  • Compression Ratio: 9.6:1
  • Piston Weight: 412 grams
  • Dish Volume: -6cc (dished design)
  • Material: 4032 aluminum alloy

MAHLE's 4032 alloy provides reduced thermal expansion compared to standard 2618 alloys, allowing for tighter piston-to-wall clearances and quieter operation. The dish design helps achieve the specified 9.6:1 compression ratio, making this piston ideal for street/strip applications or forced induction builds requiring lower compression.

Features:

  • Precision CNC-machined crown and ring grooves
  • Forged construction for maximum strength and durability
  • Optimized skirt design for reduced friction
  • Compatible with 0.927-inch wrist pins
  • Engineered for 5.400-inch connecting rods

MAHLE pistons are designed and manufactured to OE specifications with racing-derived technologies, providing reliable performance for street, racing, and high-performance engine builds.

Products specifications

Crown Vol

-6.5cc

Coatings

Phosphate plus Grafal

Clip Style

Round Wire

Piston Mass

413g

Piston Ring Thickness

1.0mm, 1.0mm, 2.0mm

Clips Included

Yes

Piston Style

Flattop, With 2 valve reliefs

Rings Included

Yes

Pin Diameter

0.927

Pin Style

Floating

Piston Kit Quantity

Sold as a set of 8

Pins Included

Yes

Piston Material

Forged, 4032

Prop 65

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

Pin Material

Steel
