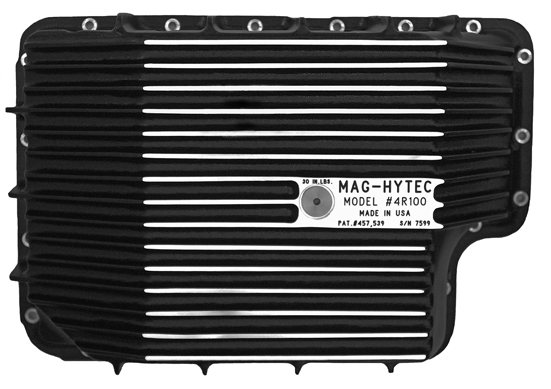

Mag-Hytec F4R100 Deep Transmission Pan for E4OD/4R100 Transmission

The Mag-Hytec F4R100 is a heavy-duty deep sump transmission pan designed specifically for Ford vehicles equipped with E4OD and 4R100 transmissions. Cast from A356-T6 aerospace-quality aluminum, this performance transmission pan significantly increases fluid capacity while providing superior cooling capabilities for hard-working trucks, vans, and motorhomes.

Key Features:

• Holds 7.6 quarts more fluid than stock pan for improved cooling and extended transmission life
• Deep high-capacity sump with finned aircraft aluminum construction for maximum heat dissipation
• Magnetic drain plug captures harmful metal particles to maintain fluid integrity
• 1/8 NPT temperature sender port allows installation of temperature gauge for monitoring
• O-rings require no gaskets or sealants for leak-free installation
• Textured black powder-coated finish with machined cooling fins for enhanced aesthetics and function
• 303 stainless steel hardware and allen key wrenches included for installation
• Overall height 6 1/8 inches

What's Included:

• Transmission pan assembly
• Bolt kit and drain plug
• O-ring gasket
• Allen key wrenches for installation

Important Installation Notes:

• Due to the extended depth of the deep sump pan, this transmission pan requires the use of a 4WD filter (sold separately)
• Excursion cross member must be moved back 1/4 inch for proper clearance
• Pans purchased directly from Mag-Hytec include the correct filter; purchases through other sources may require separate filter purchase

This premium transmission pan provides the increased fluid capacity and cooling performance needed for heavy towing, high-performance applications, and extended service life. The magnetic drain plug and integrated dipstick make routine maintenance easier while the finned design actively dissipates heat to keep transmission temperatures under control.
