ACL Bearings 1B663H-09 Race Series Rod Bearing Small Block Chevy V8 305-350-400

Manufacturer

Part Number

1B663H-09
Sale Price

$25.23

Estimated ship date Saturday, December 05

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

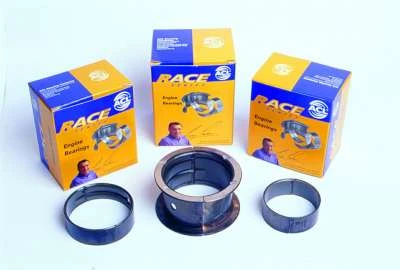

The ACL Bearings 1B663H-09 is a high-performance Race Series connecting rod bearing engineered for Small Block Chevrolet V8 engines including 262, 267, 302, 305, 307, 327, 350, and 400 cubic inch applications. This bearing features a 2.100-inch journal size and is manufactured in 0.009-inch undersize to accommodate reground crankshafts.

Race Series Performance Features:

  • Tri-metal construction with high-strength overlay plate for superior fatigue resistance
  • Hardened steel backing on all rod bearings for improved support and retention
  • Reduced overlay thickness for enhanced fatigue properties under extreme conditions
  • Increased eccentricity to compensate for bore distortion at high RPM
  • Tight consistent wall tolerances for precise bearing clearances
  • Enlarged ID chamfers to accommodate large fillet radius on performance crankshafts
  • No flash plating on bearing backs for improved heat transfer and maximum grip

ACL Race Series bearings are designed for extreme endurance under harsh operating conditions, making them ideal for high-RPM racing applications, forced induction builds, and performance street engines. The unique tri-metal design combines exceptional strength with superior load-carrying capability. Note that Race Series bearings have a characteristic dark tarnished appearance (black, brown, or blue coloration) from the electroplated overlay—this is normal and does not affect bearing performance.

Application Note: The 1B663H series is designed for constant housing bores of 1.999-2.001 inches (50.775-50.825mm). This bearing is sold individually, not as a set.

Products specifications

Max Overall Length

0.837"(21.25mm)

Max Std Shaft Size

2.1000"(53.340mm)

Max Std Tunnel Size

2.2252"(56.52mm)

Max Wall at Crown

0.0619"(1.572mm)

Min Std Shaft Size

2.0990"(53.315mm)

Min Std Tunnel Size

2.2247"(56.507mm)

Oil Clearance

Standard

Size

009
