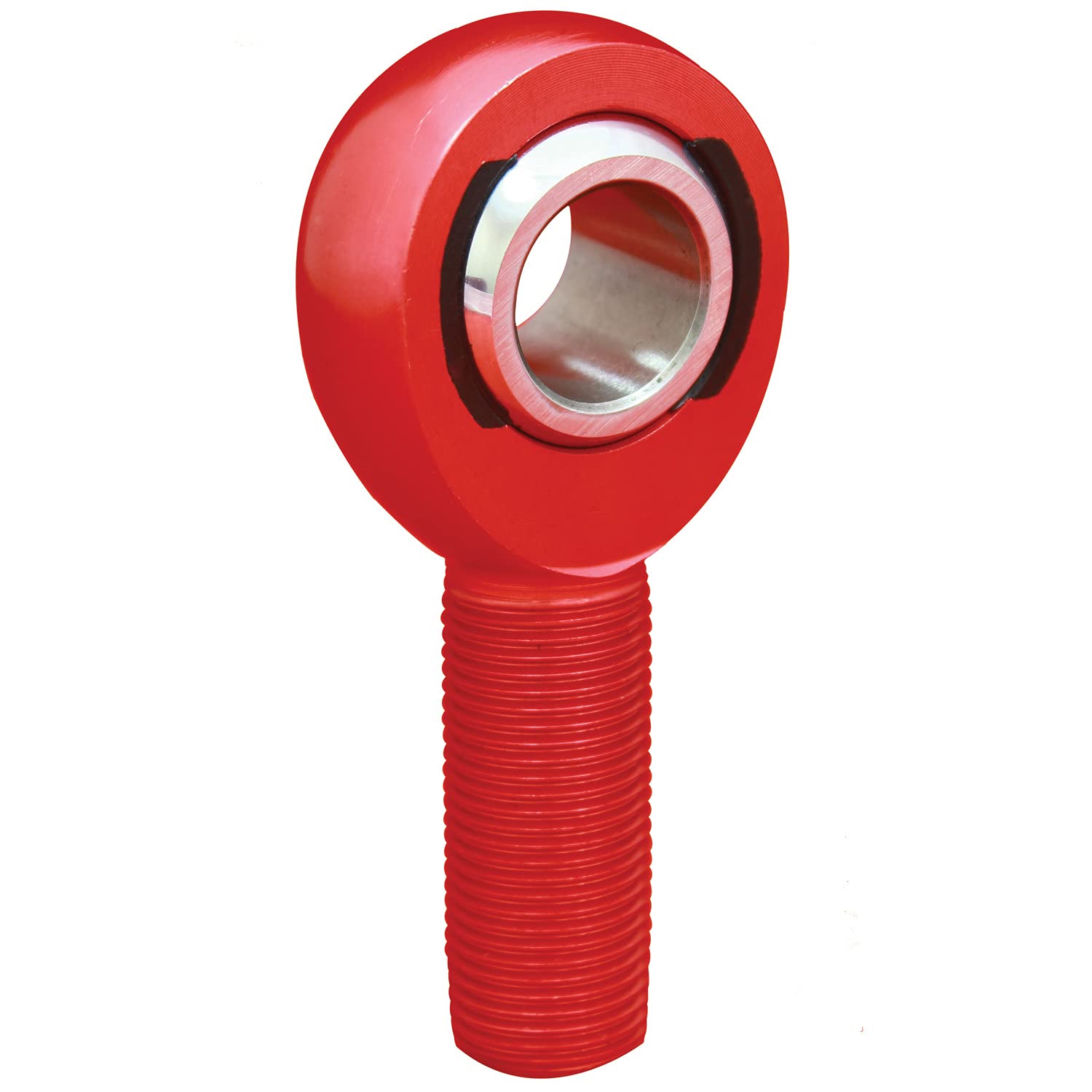

QA1 AML3 AM Series Aluminum Rod End Left-Hand Thread 3/16in. Bore Red

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

AML3
5 reviews
Sale Price

$7.93

Estimated ship date Saturday, November 21

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 AML3 is a lightweight AM Series aluminum male rod end featuring a left-hand 10-32 thread and a 3/16 in. bore. Engineered for performance and racing applications, this rod end uses a unique loader-slot body design to reduce weight without sacrificing strength, making it an ideal choice for suspension links, control arms, clutch linkages, and other high-stress connections.

Key Features:

  • Self-lubricating & self-sealing race: Reinforced Nylon 12 with PTFE liner keeps dirt and debris out while eliminating the need for routine greasing
  • More than 10% lighter than traditional three-piece aluminum rod ends
  • Most wear-resistant aluminum design available — loader-slot body provides increased cross-sectional thickness for greater tensile strength
  • Metal-to-metal support for heavy shock loads
  • Left-hand (L) male thread: 10-32 thread size for use in adjustable linkage assemblies
  • Bore: 3/16 in. (0.1875 in.)
  • Body: Aircraft-grade 7075-T6 aluminum, color-anodized red as standard
  • Ball: 52100 bearing steel, heat treated, precision ground, and hard chrome plated
  • Static radial load capacity: 788 lbs.
  • Overall shank length: 1.250 in.; head width: 0.750 in.

The AML3 pairs directly with the AMR3 (right-hand thread) to create a turnbuckle-style adjustable linkage. The red anodized finish provides corrosion protection and easy visual identification. Sold individually.

Products specifications

A (+/-0.015)

1.25

Approx Bearing Weight

0.02

B (+0.0015/-0.0005)

0.19

Ball Dia Ref

0.437

C (+0.062/-0.031)

0.75

D (+/-0.010)

0.625

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

13

Notes

Only the rod end ball is heat-treated.

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.312 in.

Rod End Centerline Length

1.250 in.

Rod End Construction

2-piece

Rod End Finish

Red anodized

Rod End Head Bore Size

0.190 in.

Rod End Head Diameter

0.625 in.

Rod End Head Width

0.312 in.

Rod End Material

Aluminum

Rod End Misalign Angle (degrees)

13 degrees

Rod End Static Load Capacity

788 lbs.

Rod End Style

PTFE/KEVLAR® lined

Rod End Thread Size

10-32 LH NF

T (+/-0.005)

0.25

Thread Length

0.750 in.

Thread Type

Left Hand

Thread UNF-3A

10-32

UTL Radical Static

788

W (+/-0.005)

0.312
