TeraFlex 4390975 JK Dana 30/44 High Steer System with HD Forged Drag Link Flip Kit

(2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK)

Manufacturer

Part Number

4390975
Sale Price

$1,429.98

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The TeraFlex 4390975 High Steer System is a comprehensive front-end steering upgrade engineered specifically for lifted 2007–2018 Jeep Wrangler JK and JK Unlimited models running Dana 30 or Dana 44 front axles. Highly recommended for JK builds with 4 inches or more of lift, this all-in-one system corrects steering geometry, maximizes component ground clearance, and eliminates common lifted-Jeep steering issues such as front-end shimmy, bump steer, and tie rod damage.

Key Features:

  • High Steer Knuckles (Pair): Cast from heavy-duty ductile iron with reinforcement in stress-prone areas; raises tie rod ground clearance by more than 1-1/8 inches to prevent bending and damage; maintains correct steering geometry angles for superior highway drivability
  • HD Forged Drag Link Flip Kit: 50% stiffer than the factory drag link; the axle-end joint is flipped 180 degrees and pressed down into the top of the knuckle, eliminating front-end shimmy and alignment issues
  • Front Upper Track Bar Drop Bracket & Frame Brace Kit: Lowers the front track bar mounting point to restore proper steering geometry; multiple mounting holes allow fine-tuning of track bar angle to reduce bump steer; includes Front Right Frame Brace and Front Frame Brace Bar to reduce frame flex and front-end shimmy
  • Steering Stabilizer Relocation Kit: Relocates the steering stabilizer to accommodate the high steer setup; compatible with 1-5/8-inch HD tie rods
  • Compatible with all factory and aftermarket axle shafts, ball joints, wheel hubs, and tie rods
  • Does not affect factory stability or traction control systems, including ESP and ABS

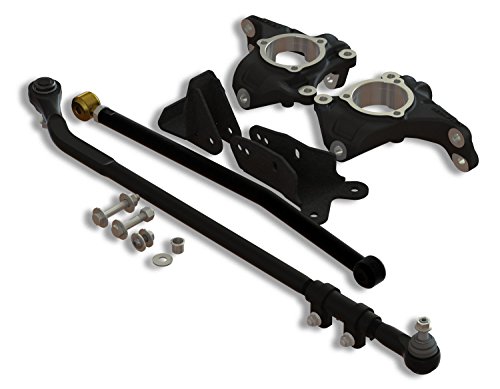

What's Included:

  • High Steer Knuckle – Left (part of #4390870)
  • High Steer Knuckle – Right (part of #4390870)
  • Track Bar Drop Bracket Kit – Front Upper 4–6 Inch Lift (#1953000)
  • Frame Brace – Front Right
  • Frame Brace Bar – Front
  • HD Forged Drag Link with flipped pressed-in joints (#1853930)
  • Steering Stabilizer Relocation Mounting Bracket (#1123160)
  • All necessary hardware

Specifications:

  • Compatible Axles: Dana 30 front axle, Dana 44 front axle
  • Recommended Lift Height: 4–6 inches
  • Compatible Vehicles: 2007–2018 Jeep Wrangler JK (2-door), 2007–2018 Jeep Wrangler JK Unlimited (4-door)

This system bundles the High Steer Knuckle Pair (#4390870), HD Forged Drag Link Flip Kit (#1853930), Front Upper Track Bar Drop Bracket & Frame Brace Kit (#1600444), and Steering Stabilizer Relocation Kit (#1123160) into a single, cohesive upgrade. The optional HD Chromoly Tie Rod Kit (#1853910) is available separately for a complete steering overhaul.

Products specifications

Fits

2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK

Country of Origin

USA

Prop 65

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Harmonized Tariff Code

8708.99

NAFTA

8708.50.4

Sold As

Kit

UNIVERSAL

No

Axle

Dana 30/44
